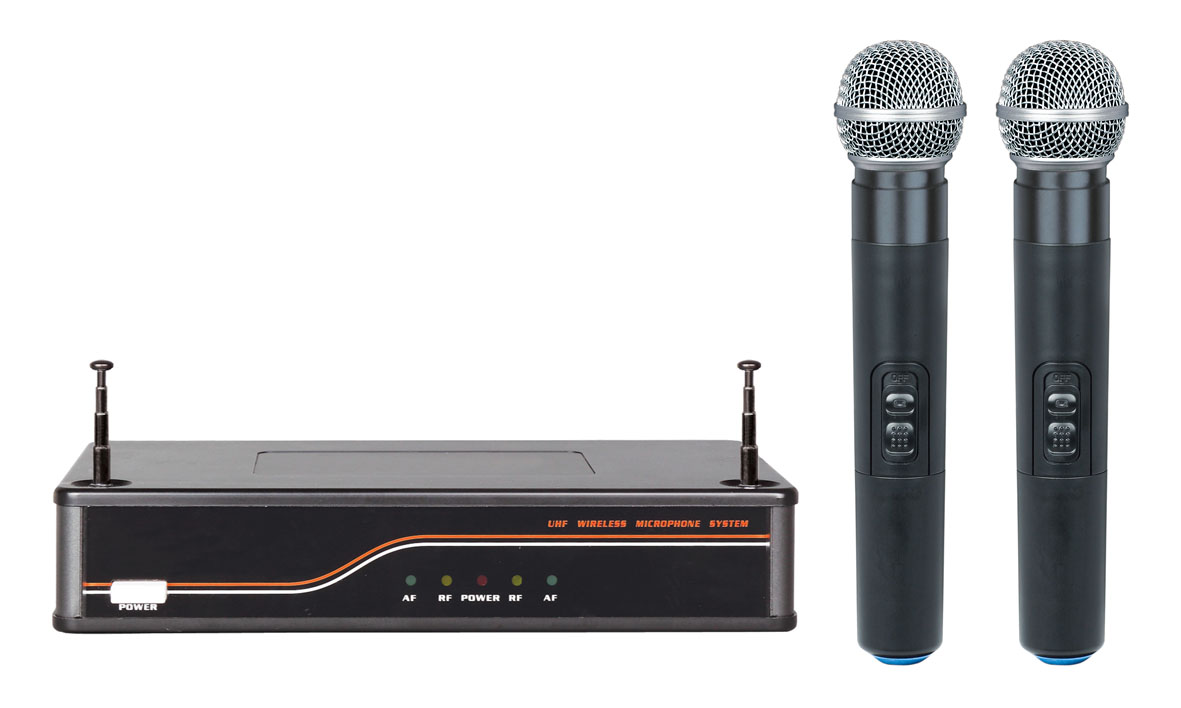

◆ Wireless microphone (UHF fixed frequency, 2 channels) EU-850
Model : EU-850 ◆ Receiver(two channel fixed system )Frequency Range 500 - 980 MHz Frequency Response 50Hz– 20KHz Audio Output Unbalanced Max output +5 dBu Working Distance 200 Feet S/N Ratio ≥ 96 dB T.H.D. (Overall) < 0.1 % Audio Delay 3 ms Audio Encoder PT Live Receive Sensitivity <-90 dBm Power Supply 12-18 V DC Power Consumed 150 mA @13.5V DC Frequency Range 500 - 980 MHz Dynamic Range > 100 dB (A) RF Output Power 10mW Input Sensitivity 2.1 mV/Pa Modulation GFSK Transmission system PLL synthesizes Power Consumed 100mA @3V Battery AA 1.5V*2 CBM: 57 x 35.70 x 47cm; Gross weight: 13.50kgs
