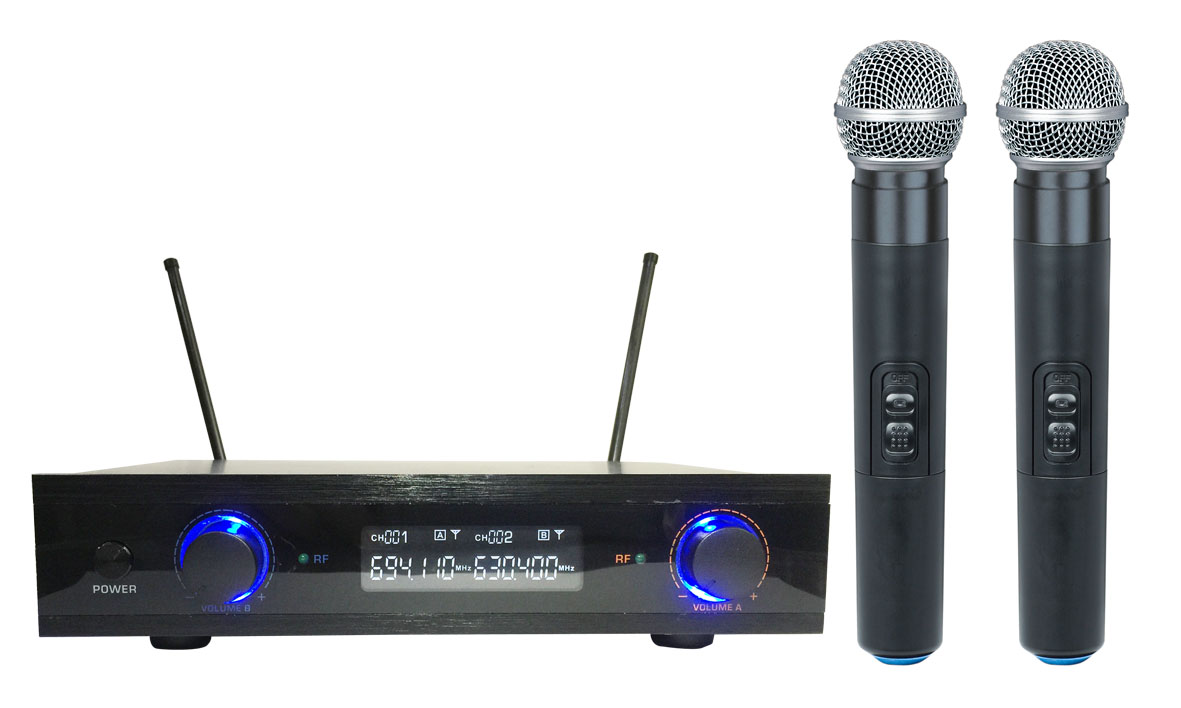

◆ Wireless microphone MD-3000

in_AD

Model : MD-3000

◆ Handheld Transmitter Receiver System
T.H.D. (Overall) < 0.1 %
Signal to Noise ≥ 96 dB (A)
RF frequency range 500 - 980 MHz
Modulation DQPSK
Bandwidth 300kHz
Dynamic Range >90 dB (A)
Audio sampling 24 bit/48 kHz
Transmission system PLL synthesizes
Audio Delay 3 ms
Audio Encoder PT Live
Frequency Response 20 - 20,000 Hz
Working Distance 200 Feet

Frequency Range 500 - 980 MHz
Audio Output Unbalanced Max output +5 dBu
Power Supply 12-18 V DC
Power Consumed 150 mA @13.5V DC
Receive Sensitivity <-90 dBm

Frequency Range 500 - 980 MHz
RF Power 10 mW
Battery 2 x AA size battery (1,5V)
Frequency Response 50 - 20,000 Hz
Input Sensitivity 2.1 mV/Pa
Power Consumed 100mA @3V

Packing: 10 sets per carton
CBM: 61.50 x 40 x 42.20cm;
Gross weight: 14.80kgs
